Build Smarter with DraftSight’s BIM Module

BIM, or Building Information Modeling, is a method for creating and managing digital models of physical structures. It enables better collaboration, precision, and efficiency throughout a construction project, from design and planning to completion. Using detailed BIM models, professionals can streamline processes, ensure data consistency, and improve project outcomes.

DraftSight Premium complements leading BIM software by enabling users to import BIM object data from Revit (.RVT) or Industry Foundation Classes (.IFC) formats. With its advanced 2D drafting and information modeling tools, DraftSight transforms these complex BIM models into high-quality, precise 2D deliverables, such as floor plans, sections, and schedules.

No, DraftSight Premium is not intended to replace BIM software like Revit or NBS Chorus. Instead, it enhances, focusing on turning Building Information Models into actionable 2D outputs. This balance ensures users maintain the best of both worlds for their workflows.

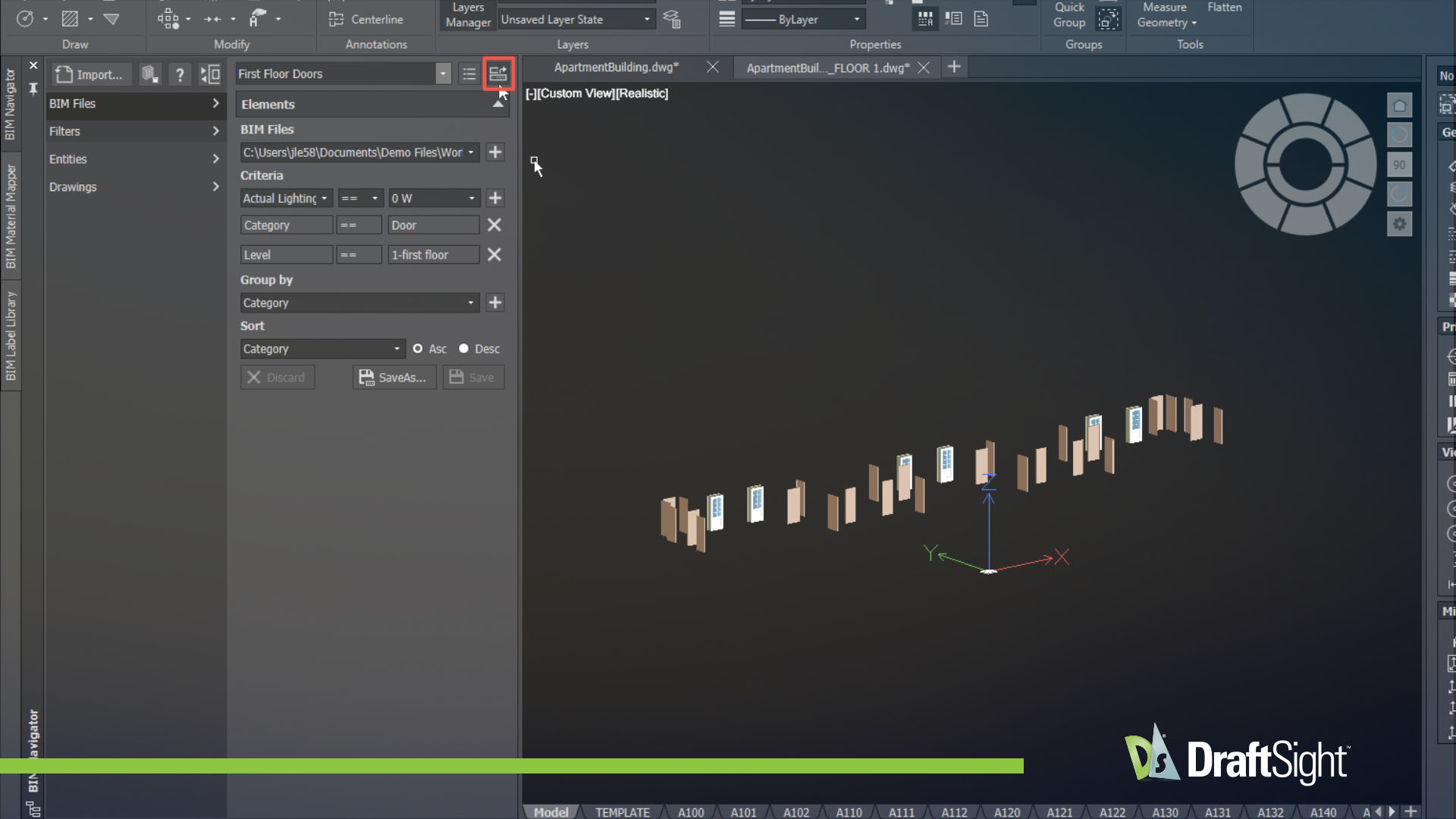

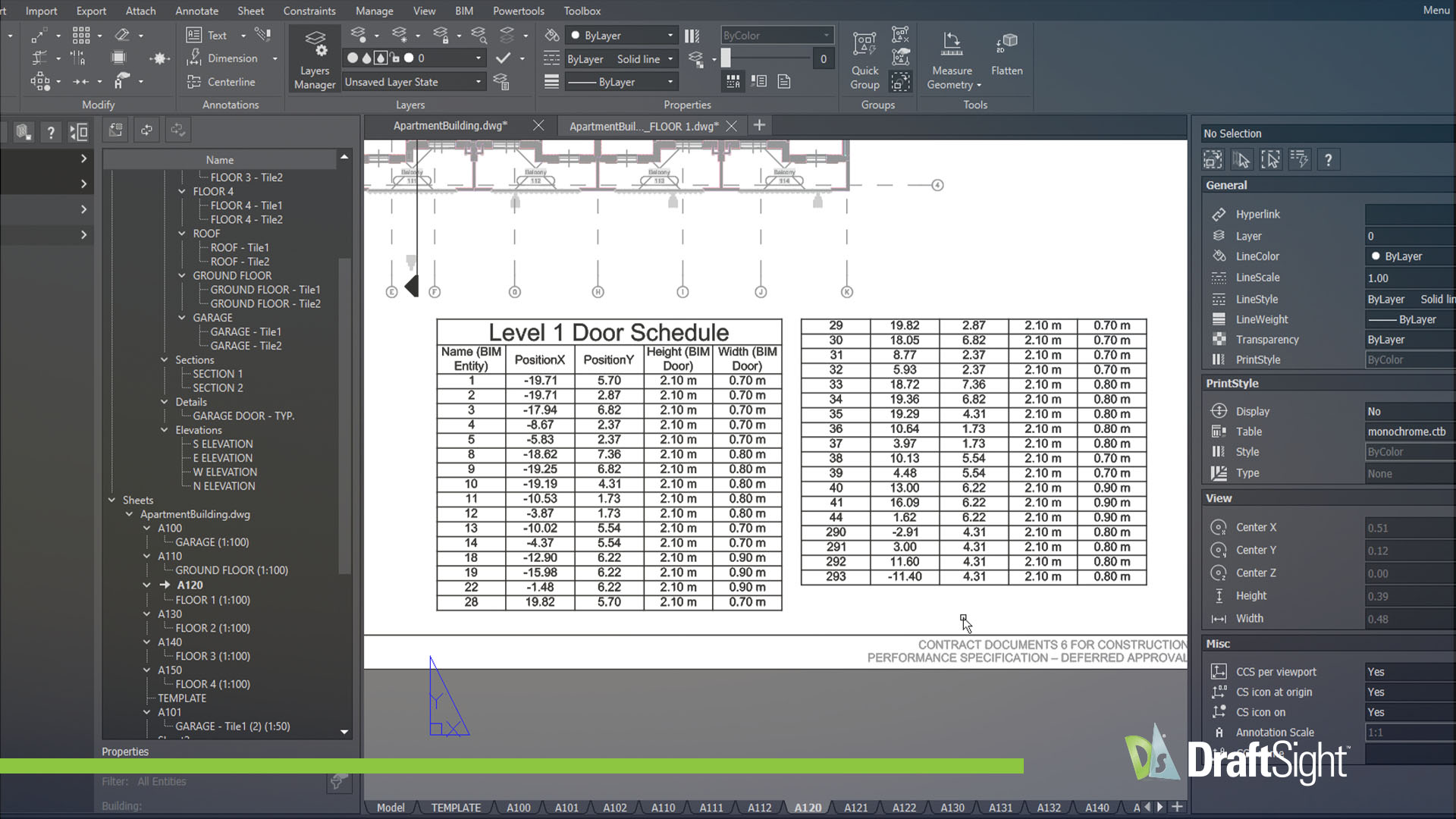

DraftSight Premium includes advanced data extraction tools that automatically generate detailed schedules from BIM model inputs, such as door inventories or room layouts. These schedules can be exported as CAD tables or other formats for seamless collaboration and review.

DraftSight Premium is created for anyone who receives or works with RVT or IFC data. Common users include architects, engineers, MEP engineers, facility managers, construction managers, and BIM Managers. It enables these professionals to quickly create detailed 2D documentation from BIM models, ensuring projects stay accurate and aligned with industry standards. Its ease of use also helps teams new to BIM workflows confidently manage their building information.

With DraftSight Premium, you can optimize your BIM services in several ways, including saving time, ensuring data precision, and enhancing collaboration. Its real-time updating ensures that changes made to BIM models automatically reflect in the corresponding 2D documentation, reducing errors and improving efficiency.

DraftSight Premium supports industry-standard formats such as Revit (.RVT) and Industry Foundation Classes (.IFC) up to 2023. This makes it compatible with many BIM software platforms, allowing seamless integration.

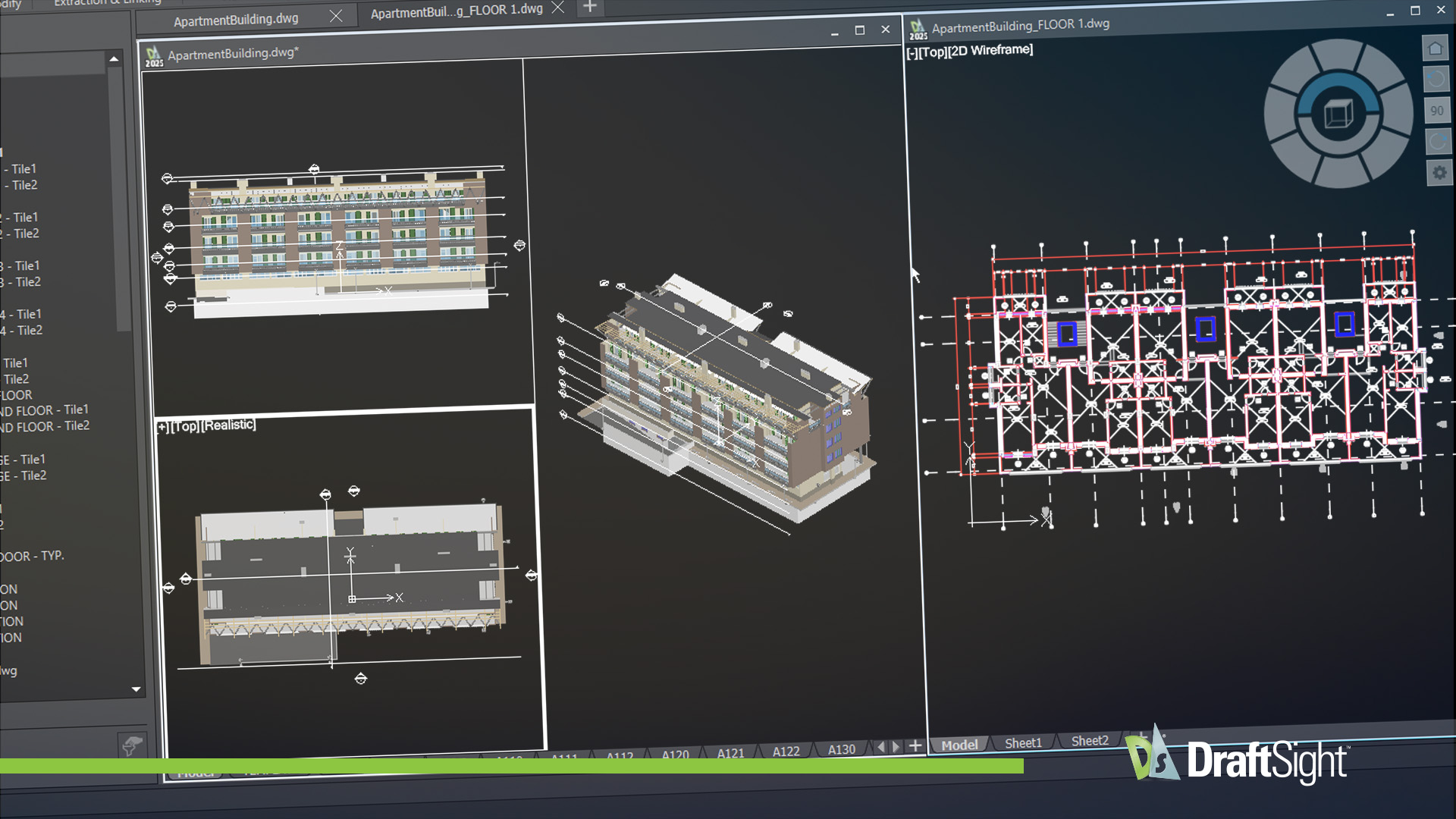

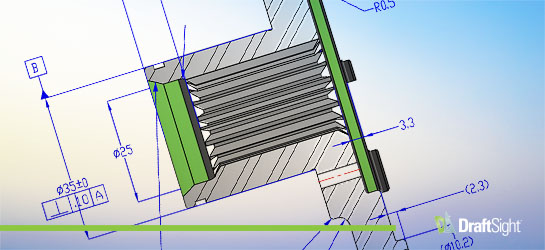

Unlike general 2D CAD tools, DraftSight Premium is designed to work with complex BIM data. It bridges the gap between 3D information models and 2D documentation by offering advanced customization options, automated data-driven workflows, and dynamic updates synced with BIM models.

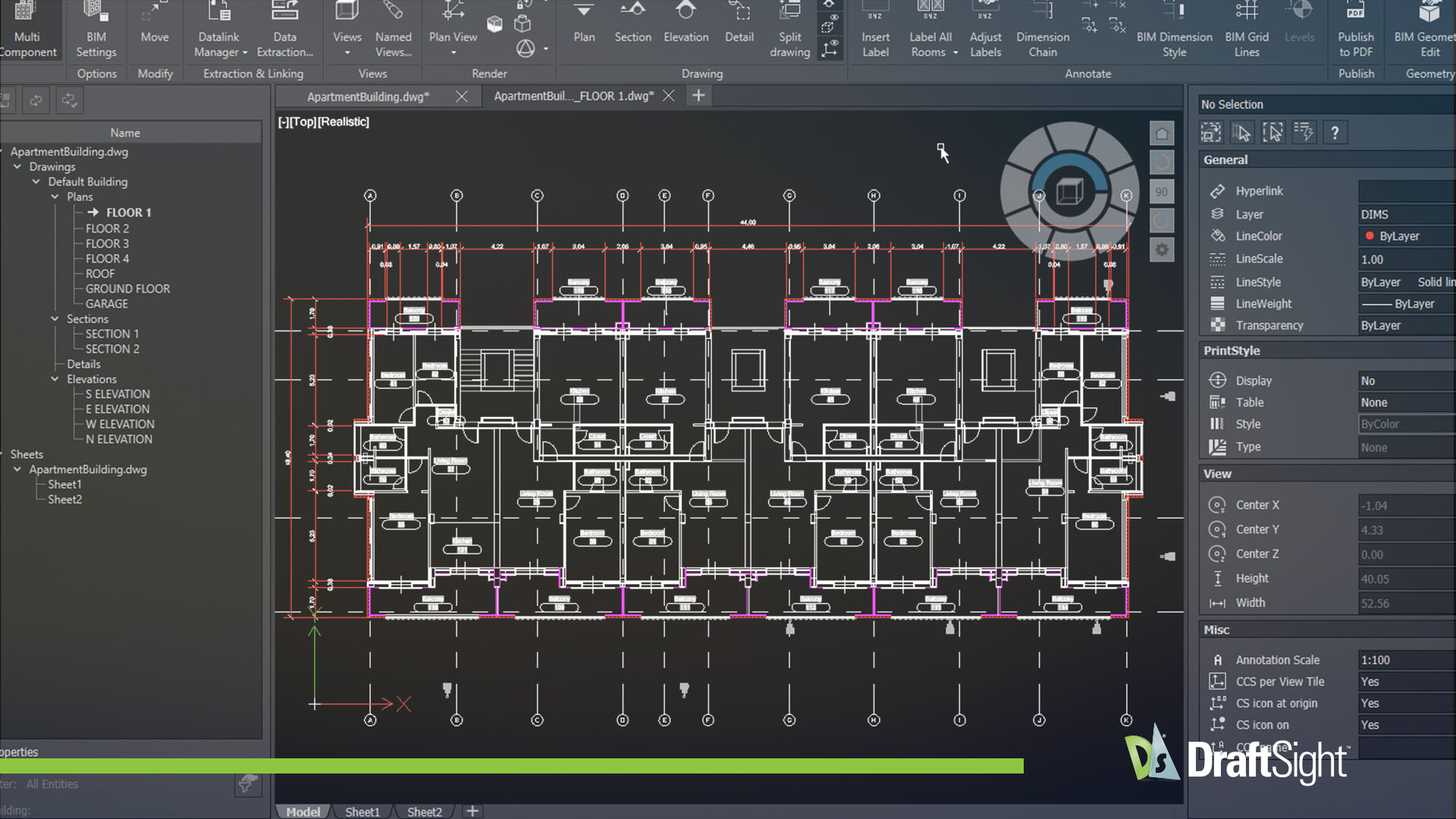

DraftSight automatically syncs 2D drawings with the original BIM models. Whenever a change is made to the BIM object or building information, DraftSight updates all associated outputs in real time. This ensures technical drawings, schedules, and other deliverables remain accurate throughout the project lifecycle.

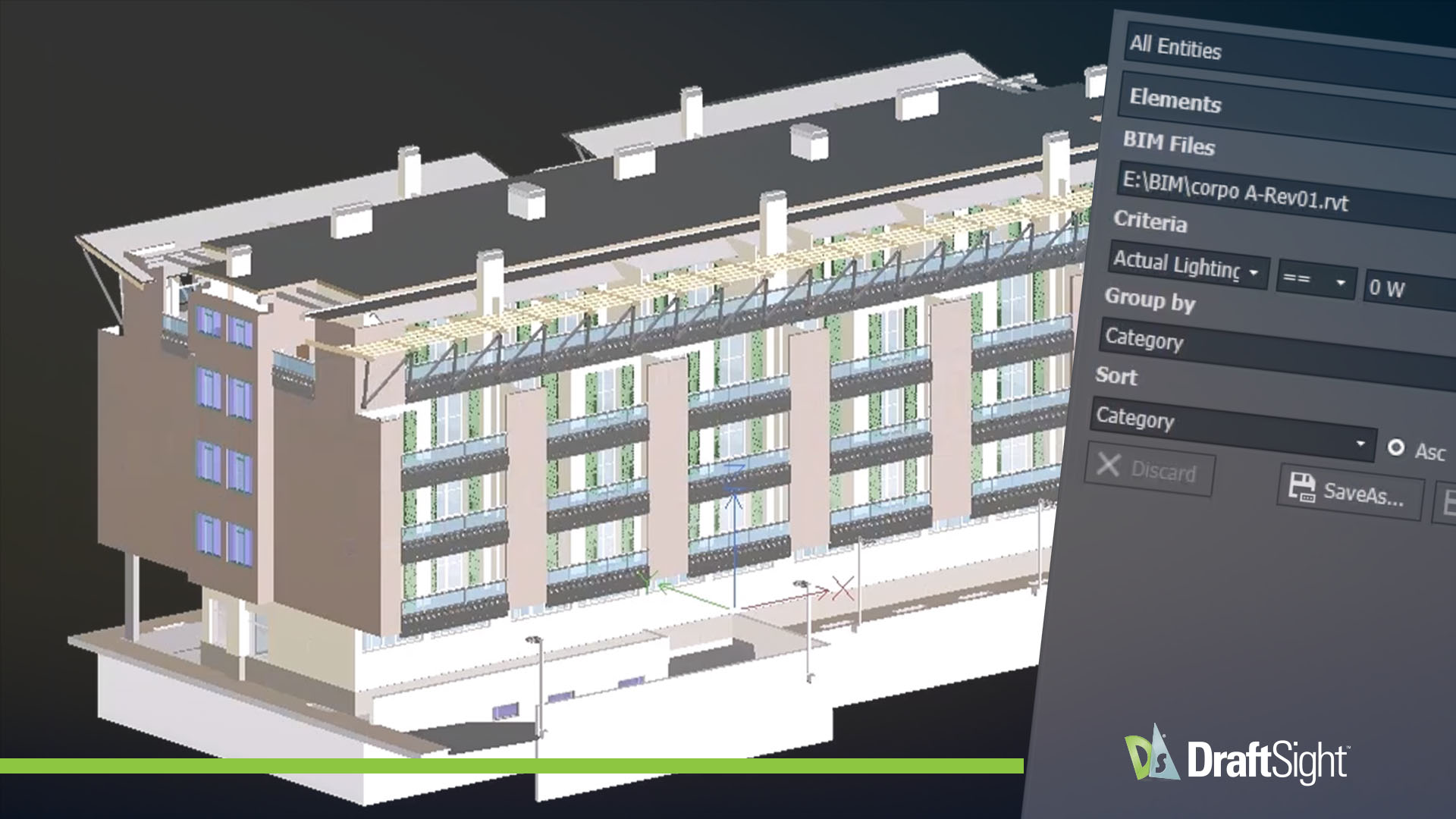

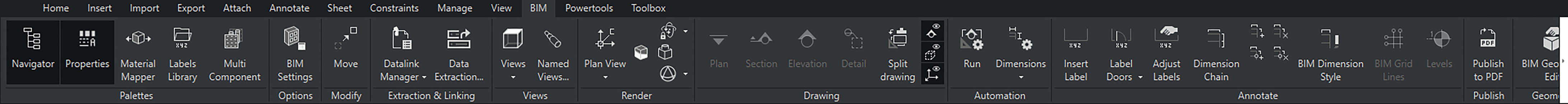

Yes, DraftSight Premium is designed to handle large and complex BIM models efficiently. Tools like the BIM Navigator Palette help users filter and organize data, allowing easy access to individual objects, dimensions, and building information for downstream documentation.

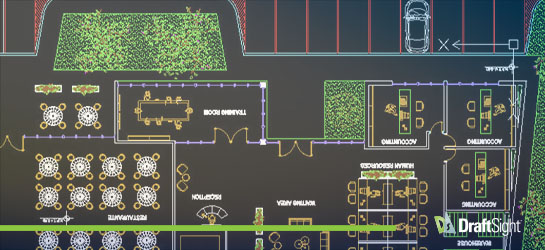

Real-time updating ensures that project outputs, such as floor plans or schedules, stay aligned with the latest changes made to the BIM model. This reduces errors, ensures compliance with building standards, and saves teams significant time during project execution.

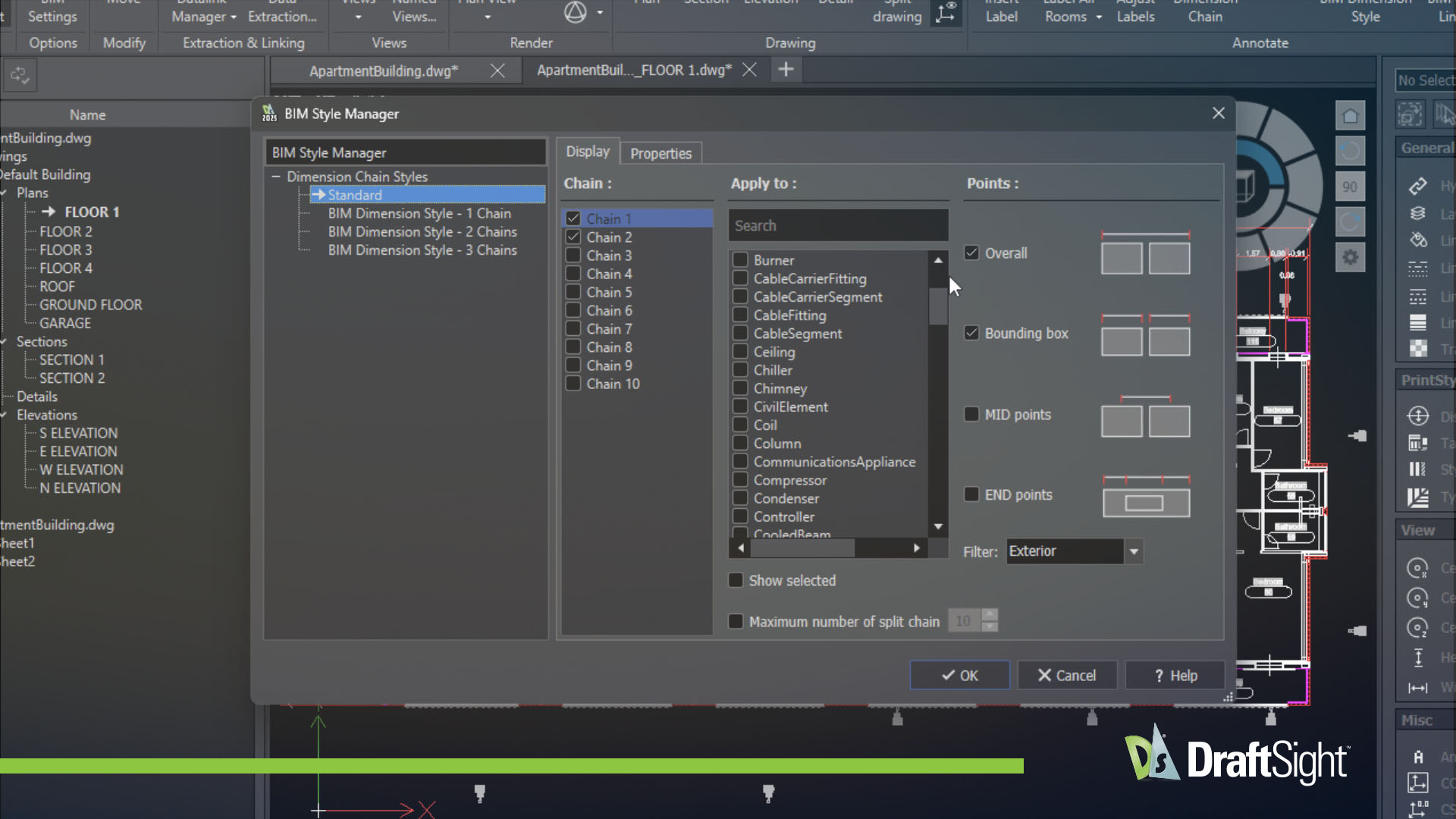

Templates in DraftSight Premium allow users to maintain consistency across multiple projects. Professionals can save time by customizing templates for specific projects or branding requirements, and ensure their deliverables, such as those in .DWT format adheres to defined information and presentation standards.

DraftSight Premium supports workflows that align with various BIM levels by ensuring data accuracy, completeness, and transparency in 2D deliverables. This focus on data integrity helps professionals meet compliance standards and collaborate effectively, no matter the project stage.

DraftSight makes collaboration seamless by converting BIM models into clear, easily shareable 2D documents. This ensures that all stakeholders, from architects to contractors, can efficiently interpret and use these outputs. Its integration with leading BIM tools further enhances team alignment across disciplines.

You can explore the full potential of DraftSight Premium for your BIM workflows by starting a free 30-day trial. This allows you to test its powerful 2D drafting and information modeling tools before making a long-term commitment.
